Medical Customized Oxygen Plastic Pressure Regulator Inhaler O2 Pressure Reducer Oxygen Gauge Flow Meter
- Overview
- Inquiry
- Related Products
Product Description
All series have passed the CE certificate The main part uses goodness copper, and cut with a precision digitally controlled lathe.
Lengthening air inlet valve lever , fit for the different capacity of oxygen cylinder.
Integrated casting flowmeter
Flow tube, wet cup of high-strength polycarbonate plastic body
High temperature high-pressure sterilized humidifier body, to meet European standards for B-level disinfection .The maximum temperature of 121 degree; Pressure 0.142MPa
Polymer high-density filter, wet-based uniform.

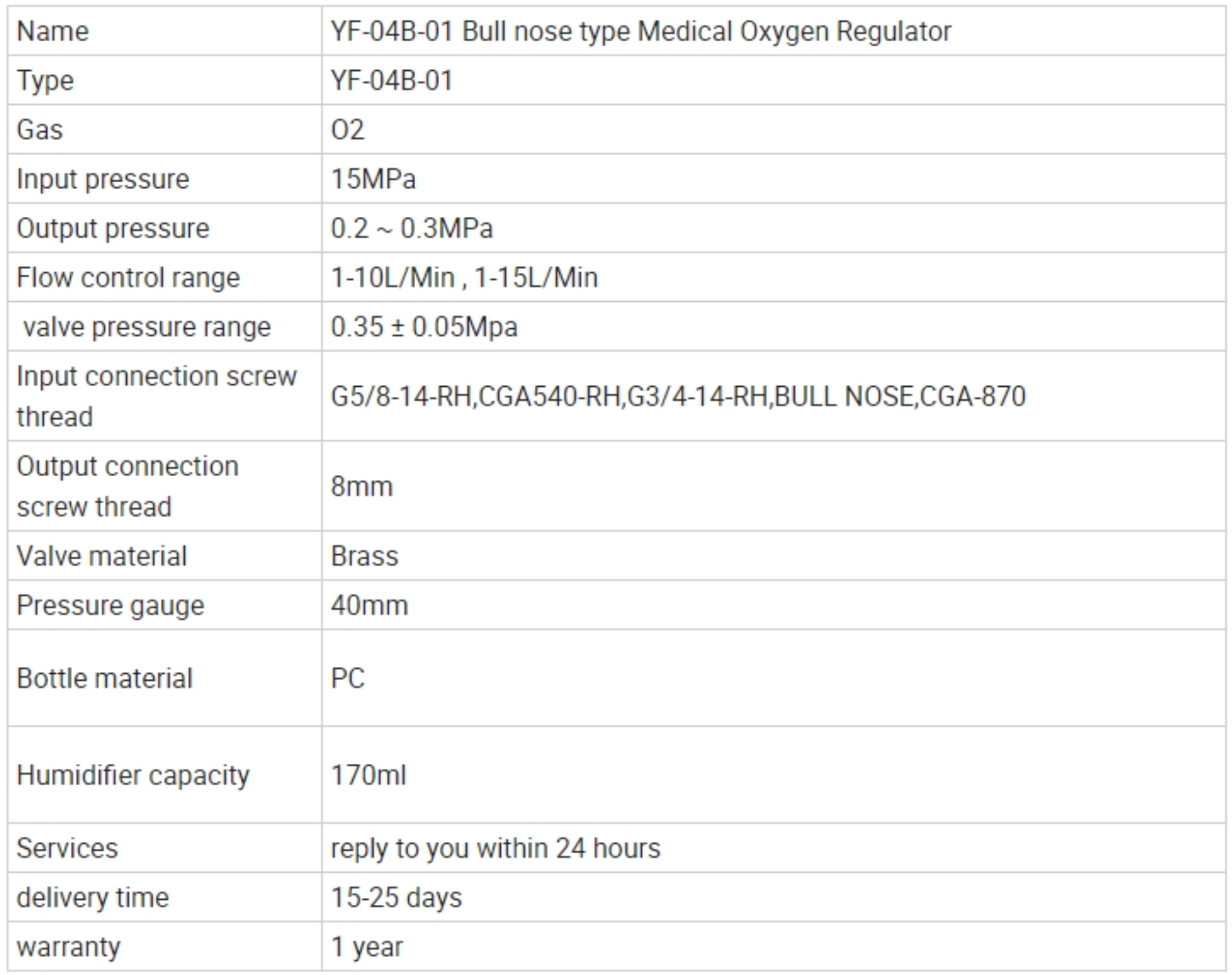

Detailed Description of Medical Oxygen Regulator with humidifier (series)
1.Input pressure:15Mpa
2.Output pressure:0.2-0.3Mpa
3.Automatic Discharge Pressure of The Safety Valve:0.35+_0.05Mpa
4.The Range of Flow:1-15L/min
5.Connection Thread:G5/8,Female
6.Mainbody:Copper
7.Structure:Piston type
8.Packing :20PCS/CTN (color box) or other
9 G.W./N.W.:20/19kg
10 Dimension:51×42×56cm
